DoorBell Mount

Narrow Full Offset Brick Extension |Ring Doorbell 4 Removable Battery | Storm Door Extender

Narrow Full Offset Brick Extension |Ring Doorbell 4 Removable Battery | Storm Door Extender

$68.00 USD
$50.00 USD $68.00 USD
Sale Sold out
Shipping calculated at checkout.



Ring Doorbell 2/3/3+/4 Full Offset Brick Extension Mount

Compatibility: Ring Battery Doorbell Models 2, 3, 3+, 4 ONLY!

  • Fits ONLY: Ring Doorbell models 2, 3, 3+, or 4 (2020 and newer battery powered). If your battery Ring has a removable battery pack, this is likely your model.
  • Confirm your model by checking: Battery Removable? Check Amazon listing or our Ring Model Identification guide (link below).
  • Ring Video Doorbell
    (Example Image - Click for Amazon Link. As an Amazon Associate, I earn from qualifying purchases.)
  • WILL NOT FIT: The Ring Wired Doorbell Pro (Wired, has curved back with 2 screw holes) or other Ring models (Wired Plus/Pro, etc.). Check model before ordering!
  • Surface Width: Requires mounting surface (trim/molding) to be AT LEAST 9/16 inches wide for the base.

Confused about your Ring model? See our Ring Model Guide!

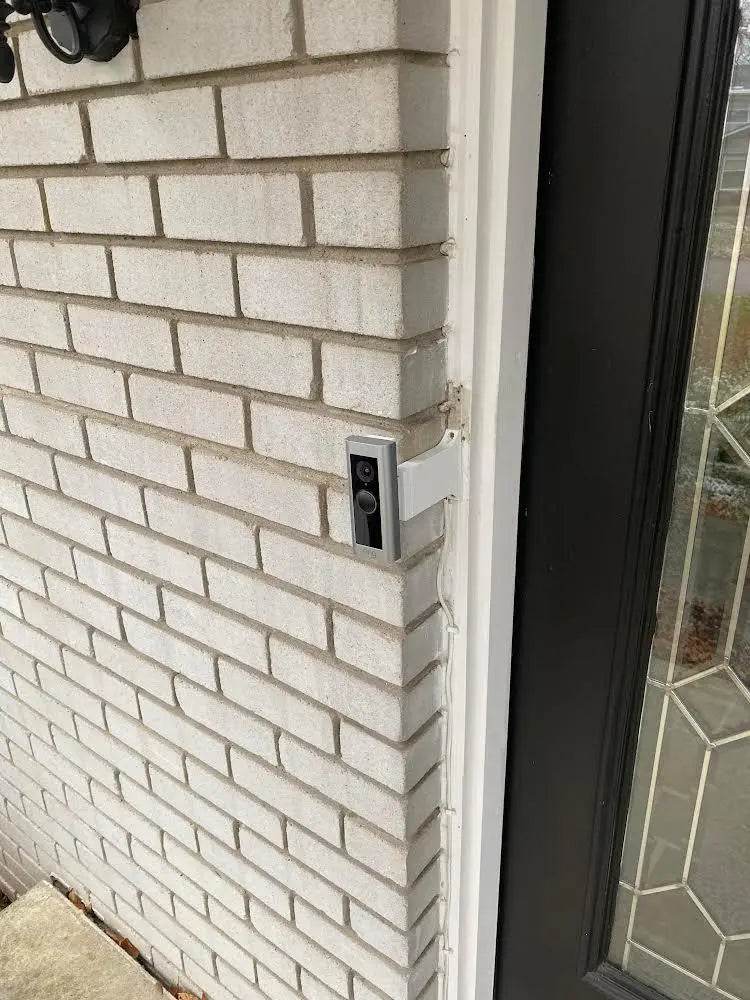

Position Your Ring Doorbell Fully Over Brick - With Full Offset!

Is your Ring Doorbell 2, 3, 3+, or 4 mounted on trim that's set back from your brick or stone siding? This **Full Offset Brick Extension Mount** brings your doorbell forward and positions it fully over your brick, providing maximum clearance for storm doors and mailboxes while maintaining excellent visibility.

It mounts easily to your existing trim (minimum 9/16" wide) without drilling into masonry, positioning your Ring doorbell correctly relative to the brick face.

How it Works: Full Offset (1 1/8")

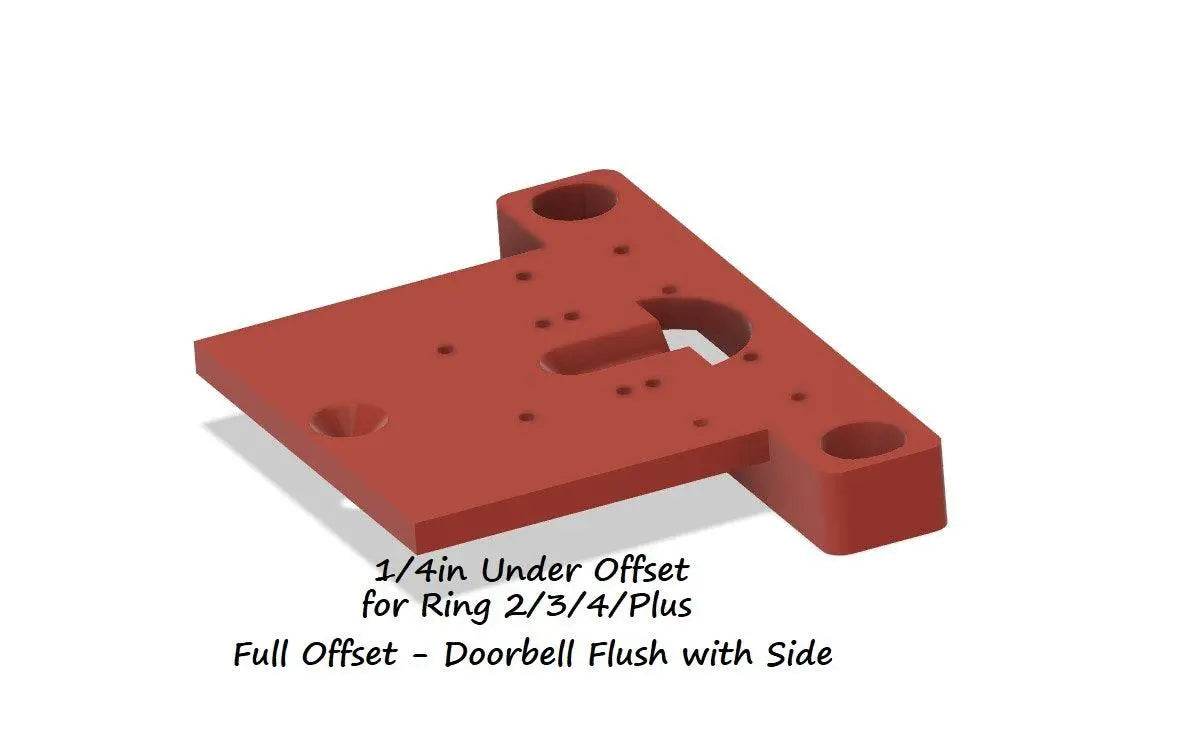

This mount features our widely compatible FULL OFFSET, which shifts the center of your Ring Doorbell approximately 1 1/8 inches horizontally towards the brick side relative to the center of the narrow 9/16" mount base. This positions the doorbell fully over the brick face.

This configuration works well for most installations, positioning the doorbell completely over the brick and providing maximum clearance for storm doors and mailboxes.

This mount positions the doorbell fully over the brick face.

Full Offset (This Product) vs Standard Offset:

Image comparing Full Offset vs Standard Offset (Illustrative)

Need Less Sideways Offset? Click here for the Standard Offset version.

Base Dimensions & Mounting: The extension base is 9/16 inches wide (requires >= 9/16" surface). Standard mounting hole spacing is 2.5 inches (center-to-center). Ensure solid mounting on trim. Wall-mounting screws not included.

Angled Trim? If your trim is angled, add our Angle Shims (sold separately) to ensure a perpendicular mount.

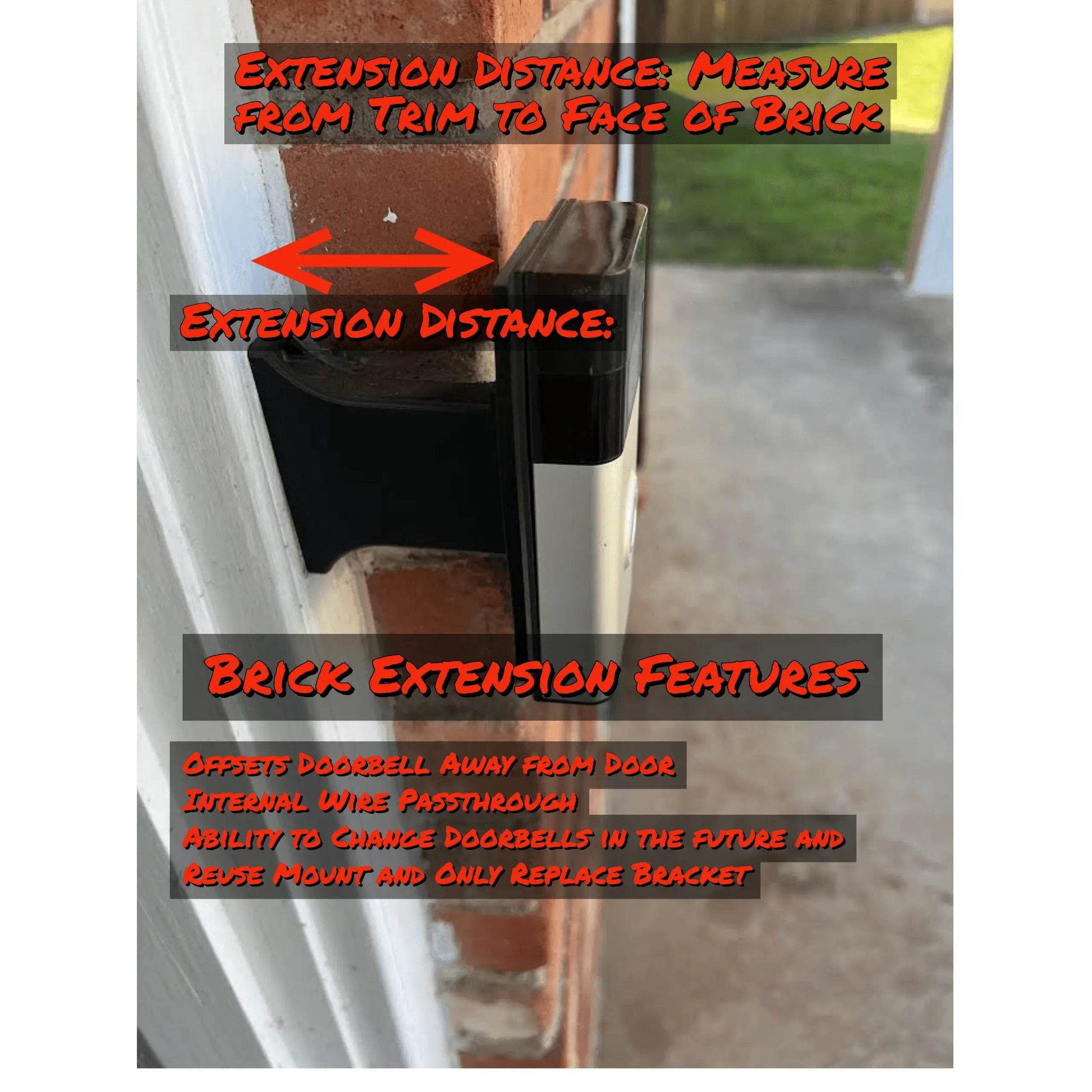

CRITICAL: Measure & Select Your Extension Length!

Choose the correct length to clear your brickwork. Measure carefully:

  • Measure the exact distance straight out from the surface where the mount base will attach (your trim) to the outermost face of your brick.
  • Order THIS measurement as your required Extension Length. (Do NOT subtract doorbell thickness for offset mounts).

Select the required extension length from the dropdown menu when ordering. (Starts at 1/4 inch).

Need help measuring? Text/email a picture! (Contact info below)

Key Features & Benefits:

  • Maximum Full Offset: Positions doorbell completely over brick with 1 1/8" offset.
  • "Fully Over Brick" Placement: Extends doorbell forward, positioning it fully over the brick face.
  • Storm Door & Mailbox Clearance: Maximum offset provides excellent clearance for storm doors and mailboxes.
  • Avoid Drilling Brick: Mounts to existing trim (>=9/16" wide, Std. 2.5" hole spacing).
  • Selectable Extension Length: Order the precise depth needed (Trim-to-Brick measurement).
  • Narrow Base (9/16" Std): Designed for standard trim widths.
  • Wire Passthrough: Internal channel accommodates wiring.
  • Durable PETG Construction: Strong, weather-resistant plastic.
  • Add-on Compatible: Works with angle shims, fillers, etc. (see below).
  • Future-Proof Bracket: Top adapter bracket potentially replaceable for future upgrades (check compatibility).

How to Install Your Full Offset Extension

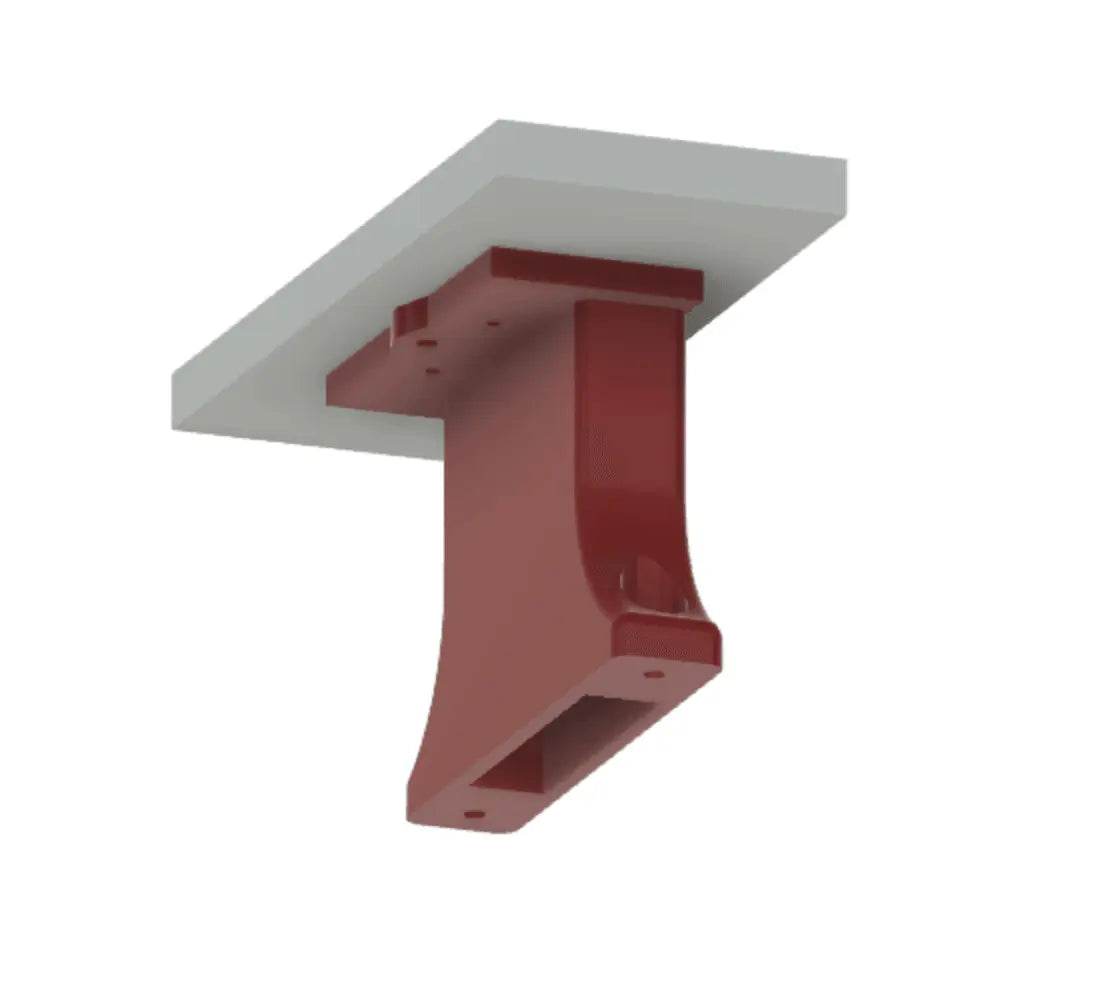

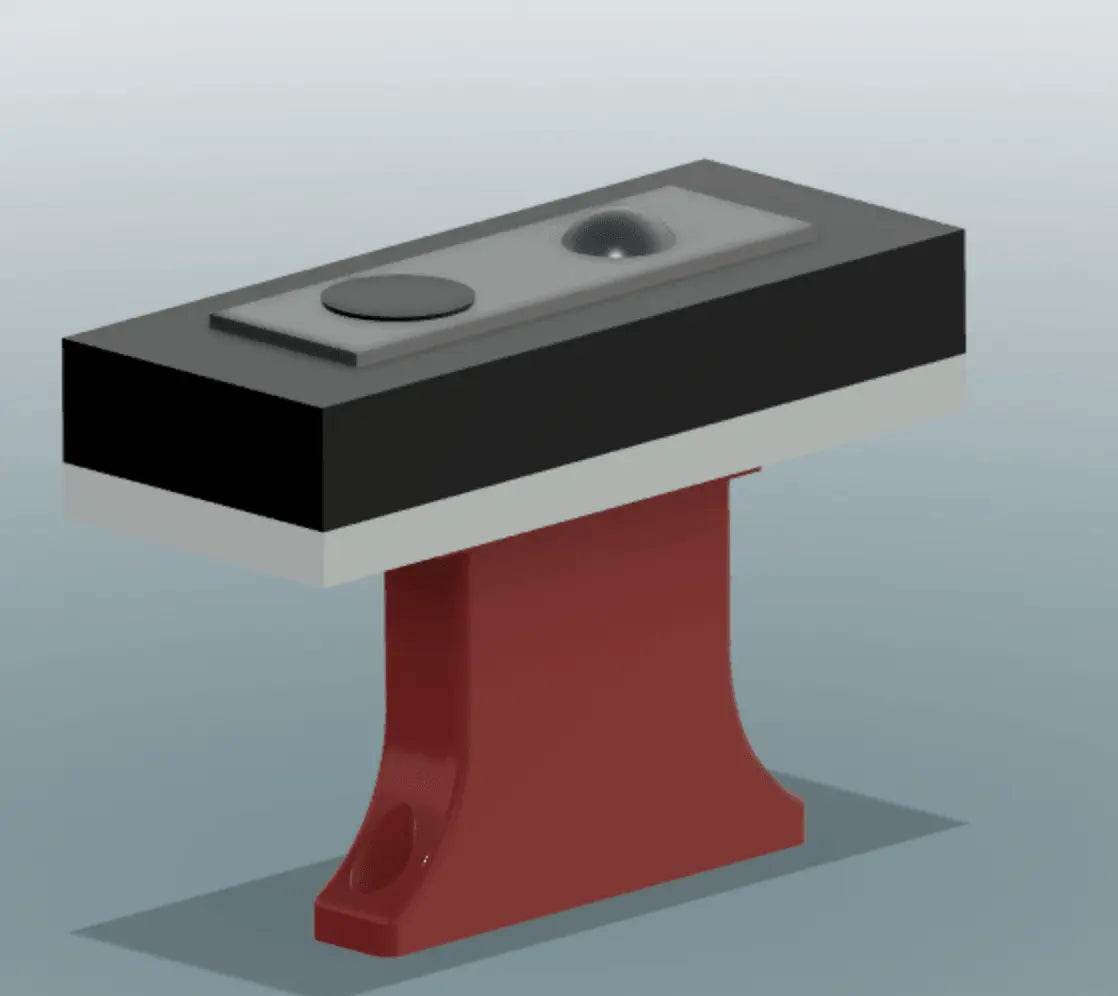

This mount uses two main printed pieces: the Extension Base and the Doorbell Adapter Bracket.

  1. Tools & Prep: Gather: Drill, PH1 & PH2 Philips Screwdrivers/Bits, Level, Anchors (if needed), Ring security screwdriver/bit (from doorbell box).
    For battery Ring doorbells: Note the removable battery. Set aside before installation.

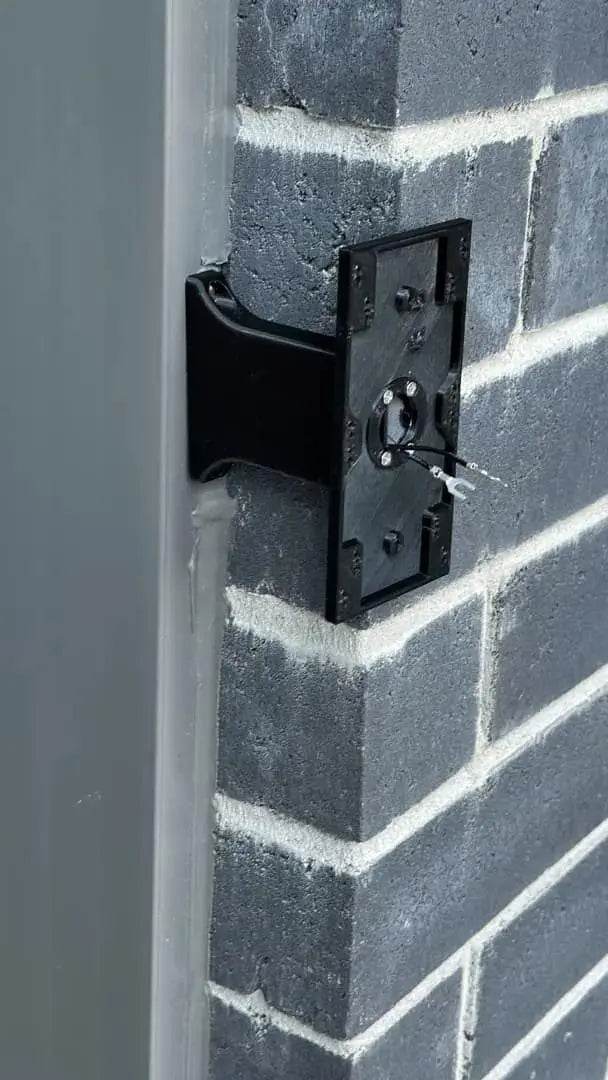

  2. Mount Extension Base: Position the Extension Base (correct length/offset) on trim over wires (ensure offset provides desired clearance). Attach securely using appropriate screws (#6 size likely, use PH2) and anchors if needed into the 2.5" spaced holes.
    Ensure base is level. Drill pilot holes. Don't overtighten.
  3. Attach Doorbell Adapter Bracket: Route wires through the Doorbell Adapter Bracket (top piece for battery Ring). Align onto Extension Base. Attach using the four small center screws provided (likely #4 screws / PH1 driver).
    Use correct PH1 bit. Tighten until flush. Check for/clear debris if needed. Do NOT over-torque.
  4. Wire Doorbell: Connect wires to your Ring Doorbell following Ring's instructions. Tuck excess wire into base cavity.
  5. Mount Ring Doorbell:
    • For battery Ring models (2, 3, 3+, 4): Align the Ring Doorbell body onto the Doorbell Adapter Bracket.
    • Secure the doorbell to the Adapter Bracket using the small screws PROVIDED WITH THIS MOUNT (typically #4 / PH1 driver). Do NOT use Ring's wall screws here.
    • Once the body is secure, install the removable battery (if your model has one) and attach the faceplate using the security screw(s) and tool PROVIDED BY RING.
    Use correct drivers/tools for each screw type. Tighten gently.
  6. Final Check & Power On: Ensure doorbell is secure. Install battery if applicable. Test with Ring app.

Follow safety rules & Ring's guidelines. Use correct anchors/screws for wall type. Correct screwdriver size prevents stripping.

How the Doorbell Brick Extension Enhances Your Ring

Maximum Placement Flexibility

The Full Offset Brick Extension ensures your Ring Doorbell 2, 3, 3+, or 4 camera has an optimal view when mounted on recessed trim, helping capture important details. The full offset provides maximum clearance for storm doors and mailboxes.

Simple Installation Process

Installing this extension is straightforward. Mount the base to your existing trim (avoiding brick drilling!), attach the adapter bracket, select your extension length, and mount your doorbell. Designed for easy homeowner installation.

Durable and Weather-Resistant

Crafted from durable PETG plastic, this brick extension withstands outdoor conditions, ensuring your Ring Doorbell remains securely mounted and operational year-round.

Optional Add-ons & Accessories:

Further customize your installation:

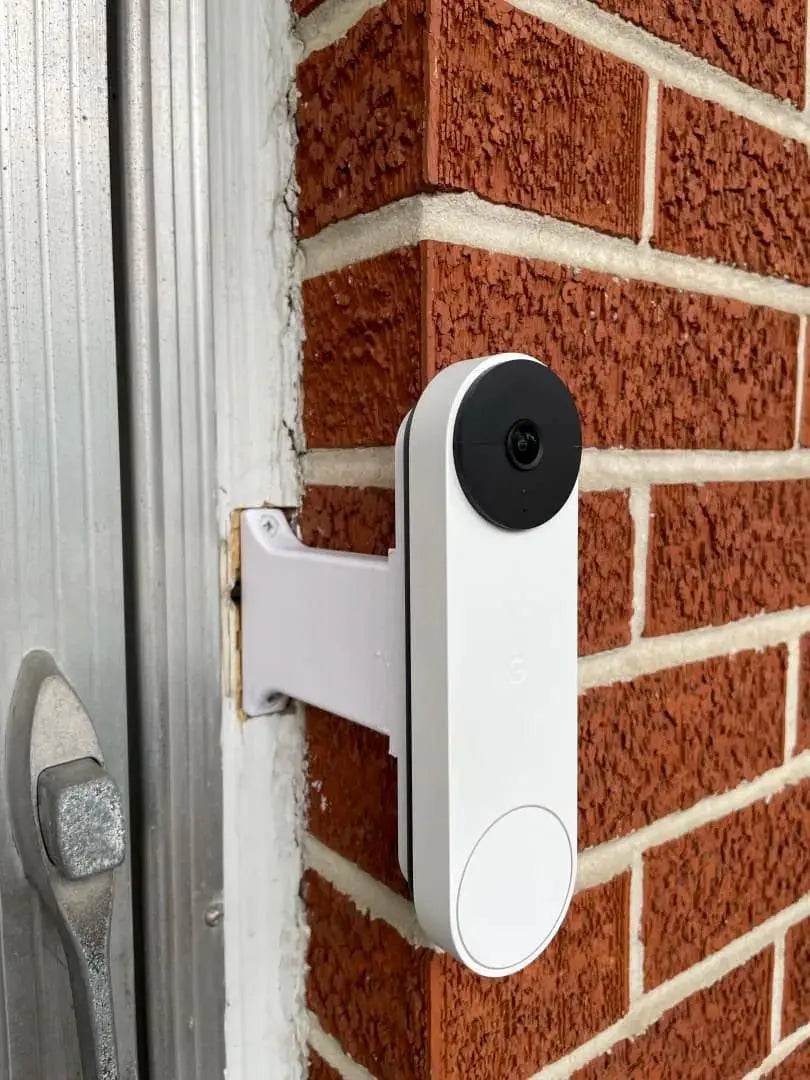

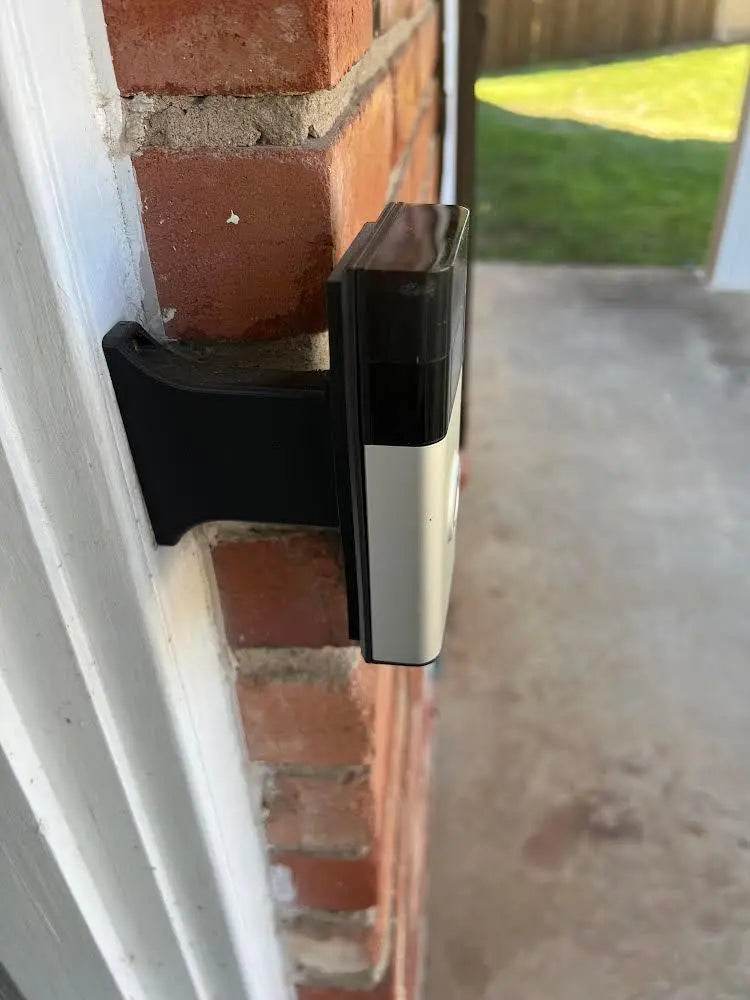

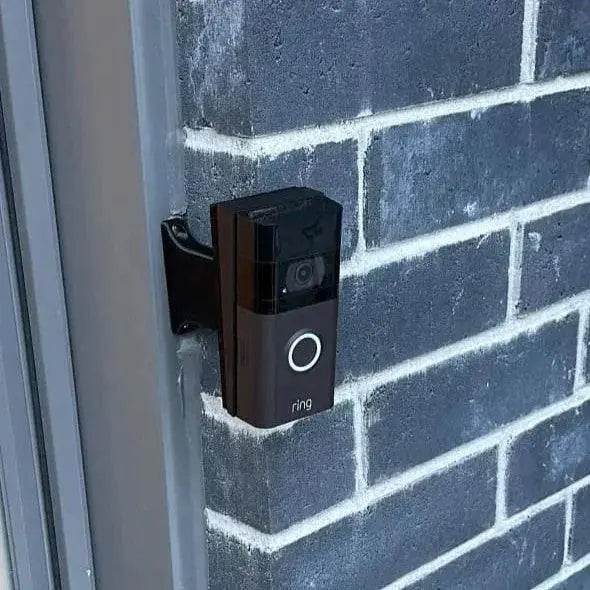

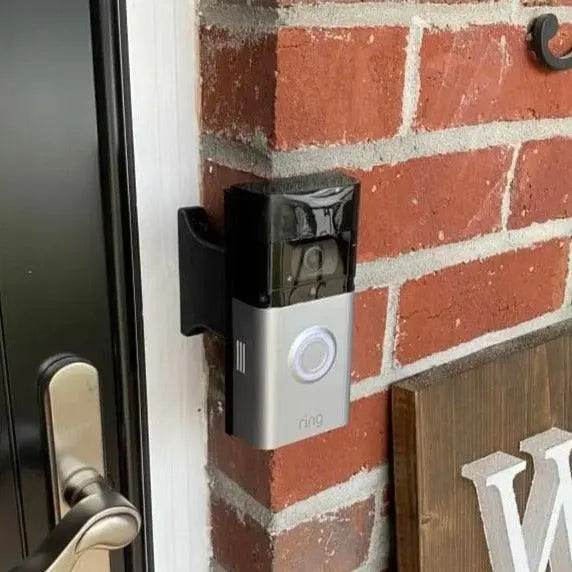

Product Examples

(See listing photos for details or contact us for more examples!)

Need Help? Confirm Compatibility & Measurements!

Confused about your Ring model? Need help measuring extension length?

Standard Color: Black. For other colors, add the Color Change Request item.

Doorbell Not Included. Includes the 2-piece extension mount (Extension Base + Doorbell Adapter Bracket) and necessary assembly screws.

PETG Material: Printed in durable, outdoor-rated PETG.

3D Printed Quality: Minor cosmetic variations inherent to 3D printing may exist but do not affect function. Contact us with quality concerns before reviewing.

Order the Full Offset Brick Extension for your Ring Doorbell 2, 3, 3+, or 4 today! Remember to measure carefully (Trim to Brick Face!) and select your required extension length.
