DoorBell Mount

Narrow Full Offset Brick Extension |Ring Doorbell 3 Removable Battery | Full Offset Over Brick Trim Install

Narrow Full Offset Brick Extension |Ring Doorbell 3 Removable Battery | Full Offset Over Brick Trim Install

$68.00 USD
$50.00 USD $68.00 USD
Sale Sold out
Shipping calculated at checkout.

Ring Doorbell Plus Standard Offset Brick Extension Mount (5/8")

Compatibility: Ring Doorbell Plus ONLY!

  • Fits ONLY: The Ring Doorbell Plus (newest wired model with flat design and removable facet). This is the latest wired model from Ring.
  • Confirm your model: Wired? Check the product images and Ring documentation to verify you have the "Plus" variant.
  • Ring Doorbell Plus
    (Example Image - Click for Amazon Link. As an Amazon Associate, I earn from qualifying purchases.)
  • WILL NOT FIT: The Ring Wired Doorbell Pro (has curved back), other Wired models (Wired 2021, etc.), or Ring battery doorbells. Check before ordering!
  • Surface Width: Requires mounting surface (trim/molding) to be AT LEAST 9/16 inches wide for the base.

Confused about your Ring model? See our Ring Model Guide!

Extend Your Ring Doorbell Plus Past Brick with Standard Offset!

Is your Ring Doorbell Plus mounted on trim that's set back from your brick or stone siding? This **Standard Offset Brick Extension Mount** brings your doorbell forward for improved visibility and access, while providing our popular standard sideways offset.

It mounts easily to your existing trim (minimum 9/16" wide) without drilling into masonry, positioning your Plus correctly relative to the brick face.

How it Works: Standard Offset (5/8")

This mount features our widely compatible STANDARD OFFSET, which shifts the center of your Ring Doorbell Plus approximately 5/8 inches horizontally towards the brick side relative to the center of the narrow 9/16" mount base. This typically leaves about 3/8 inch of the base visible near the door frame.

This configuration works well for most installations, partially positioning the doorbell over the adjacent brick and providing good door clearance.

This mount positions the doorbell over or in front of the brick face, not flush with it.

Standard Offset (This Product) vs Full Offset:

Image comparing Standard Offset vs Full Offset (Illustrative)

Need Maximum Sideways Clearance? Click here for the Full Offset version.

Base Dimensions & Mounting: The extension base is 9/16 inches wide (requires >= 9/16" surface). Standard mounting hole spacing is 2.5 inches (center-to-center). Ensure solid mounting on trim. Wall-mounting screws not included.

Angled Trim? If your trim is angled, add our Angle Shims (sold separately) to ensure a perpendicular mount.

CRITICAL: Measure & Select Your Extension Length!

Choose the correct length to clear your brickwork. Measure carefully:

  • Measure the exact distance straight out from the surface where the mount base will attach (your trim) to the outermost face of your brick.
  • Order THIS measurement as your required Extension Length. (Do NOT subtract doorbell thickness for offset mounts).

Select the required extension length from the dropdown menu when ordering. (Starts at 1/4 inch).

Need help measuring? Text/email a picture! (Contact info below)

Key Features & Benefits:

  • Tailored Fit: Specifically for Ring Doorbell Plus (newest wired model).
  • Standard 5/8" Offset: Provides good sideways positioning for many situations.
  • "Over Brick" Placement: Extends doorbell forward past brick, positioning it partially over the brick face.
  • Avoid Drilling Brick: Mounts to existing trim (>=9/16" wide, Std. 2.5" hole spacing).
  • Selectable Extension Length: Order the precise depth needed (Trim-to-Brick measurement).
  • Narrow Base (9/16" Std): Designed for standard trim widths.
  • Wire Passthrough: Internal channel accommodates wiring.
  • Durable PETG Construction: Strong, weather-resistant plastic.
  • Add-on Compatible: Works with angle shims, fillers etc. (see below).
  • Future-Proof Bracket: Top adapter bracket potentially replaceable for future upgrades (check compatibility).

How to Install Your Standard Offset Extension

This mount uses two main printed pieces: the Extension Base and the Doorbell Adapter Bracket.

  1. Tools & Prep: Gather: Drill, PH1 & PH2 Philips Screwdrivers/Bits, Level, Anchors (if needed), Ring security screwdriver/bit (from doorbell box).
    Turn OFF power at the breaker before installation!
  2. Mount Extension Base: Position the Extension Base (correct length/offset) on trim over wires (ensure offset provides desired clearance). Attach securely using appropriate screws (#6 size likely, use PH2) and anchors if needed into the 2.5" spaced holes.
    Ensure base is level. Drill pilot holes. Don't overtighten.
  3. Attach Doorbell Adapter Bracket: Route wires through the Doorbell Adapter Bracket (top piece for Plus). Align onto Extension Base. Attach using the four small center screws provided (likely #4 screws / PH1 driver).
    Use correct PH1 bit. Tighten until flush. Check for/clear debris if needed. Do NOT over-torque.
  4. Wire Doorbell: Connect wires to your Ring Doorbell Plus following Ring's instructions. Tuck excess wire into base cavity.
  5. Mount Ring Doorbell Plus:
    • Align the Ring Doorbell Plus body onto the Doorbell Adapter Bracket.
    • Secure using the small screws PROVIDED WITH THIS MOUNT (typically #4 / PH1 driver). Do NOT use Ring's wall screws here.
    • Once the body is secure, attach the removable faceplate using the security screw(s) and tool PROVIDED BY RING.
    Use correct drivers/tools for each screw type. Tighten gently.
  6. Final Check & Power On: Ensure doorbell is secure. Turn power back on and test.

Follow safety rules & Ring's guidelines. Use correct anchors/screws for wall type. Correct screwdriver size prevents stripping.

How the Plus Brick Extension Enhances Your Ring

Improved Placement Flexibility

The Standard Offset Brick Extension ensures your Ring Doorbell Plus camera has an optimal view when mounted on recessed trim, helping capture important details. This standard offset provides good visibility and accessibility for many installations.

Simple Installation Process

Installing this extension is straightforward. Mount the base to your existing trim (avoiding brick drilling!), attach the adapter bracket, select your extension length, and mount your doorbell. Designed for easy homeowner installation.

Durable and Weather-Resistant

Crafted from durable PETG plastic, this brick extension withstands outdoor conditions, ensuring your Ring Doorbell Plus remains securely mounted and operational year-round.

Optional Add-ons & Accessories:

Further customize your installation:

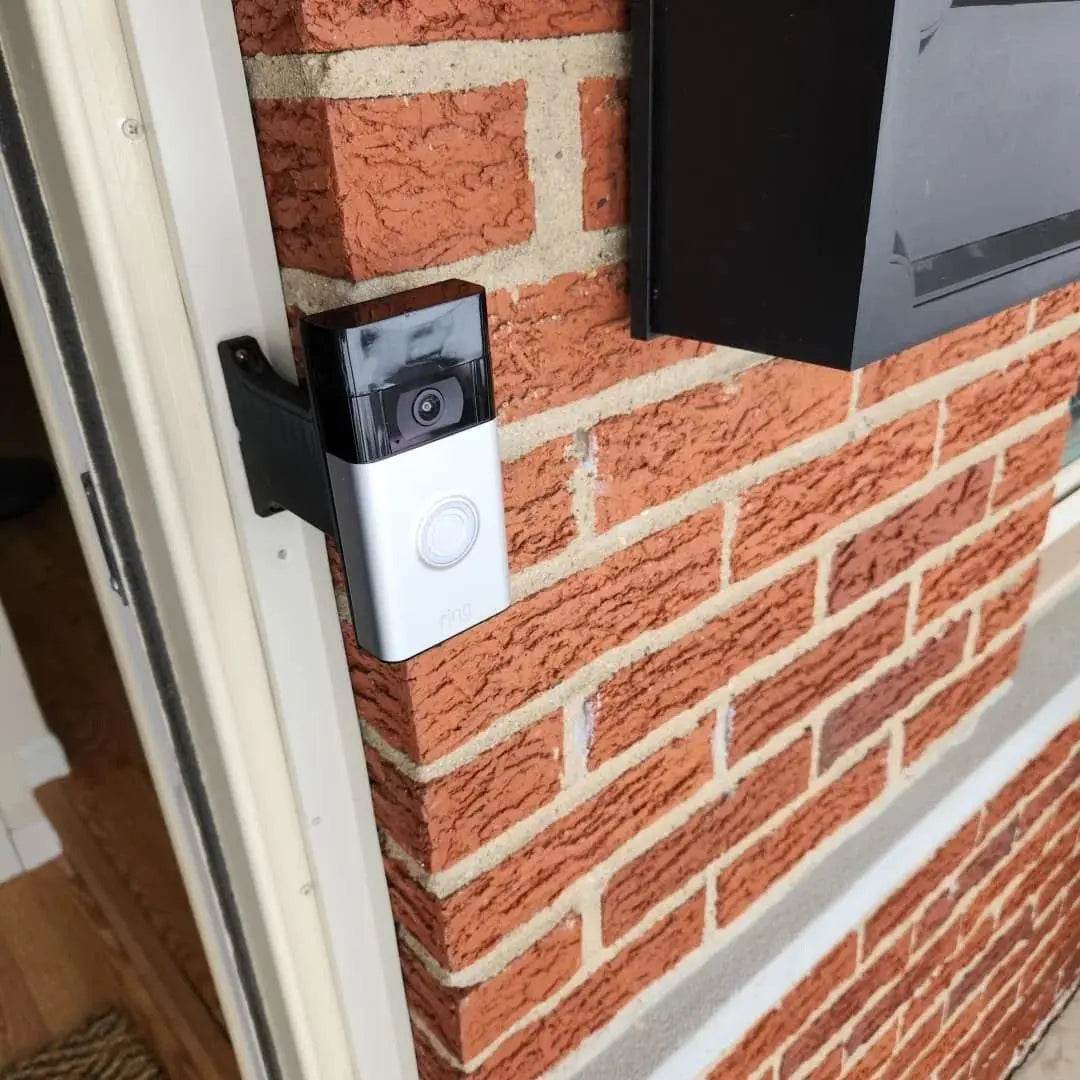

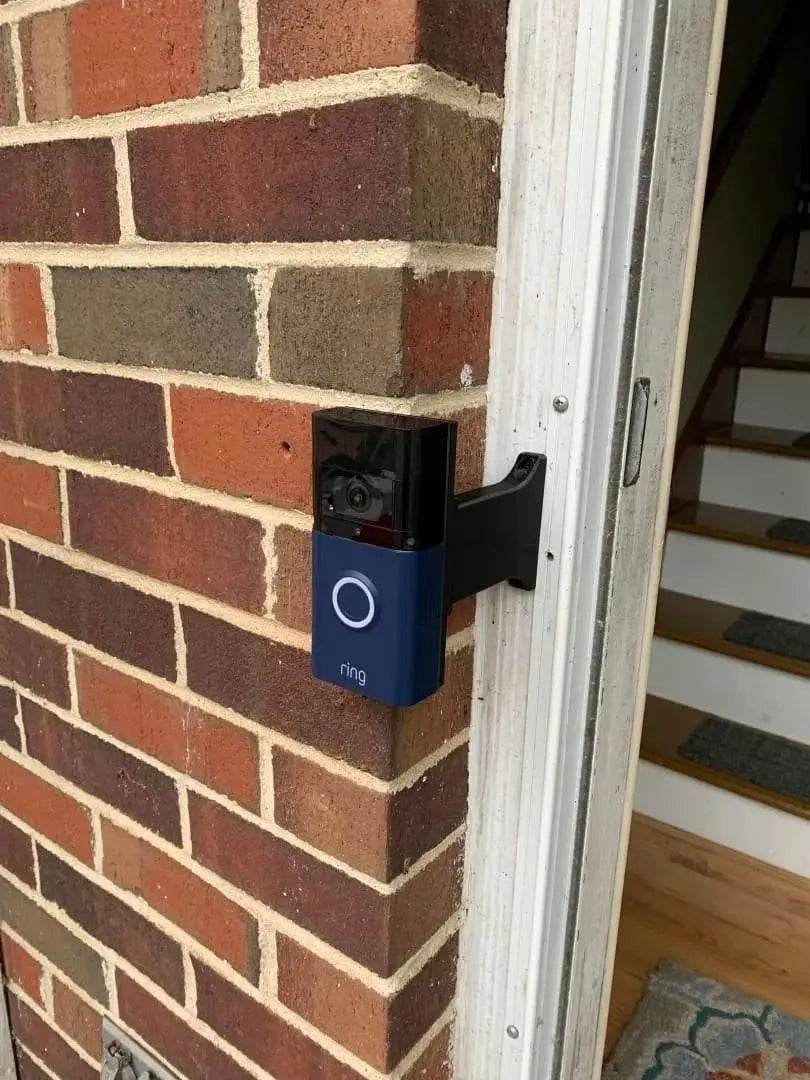

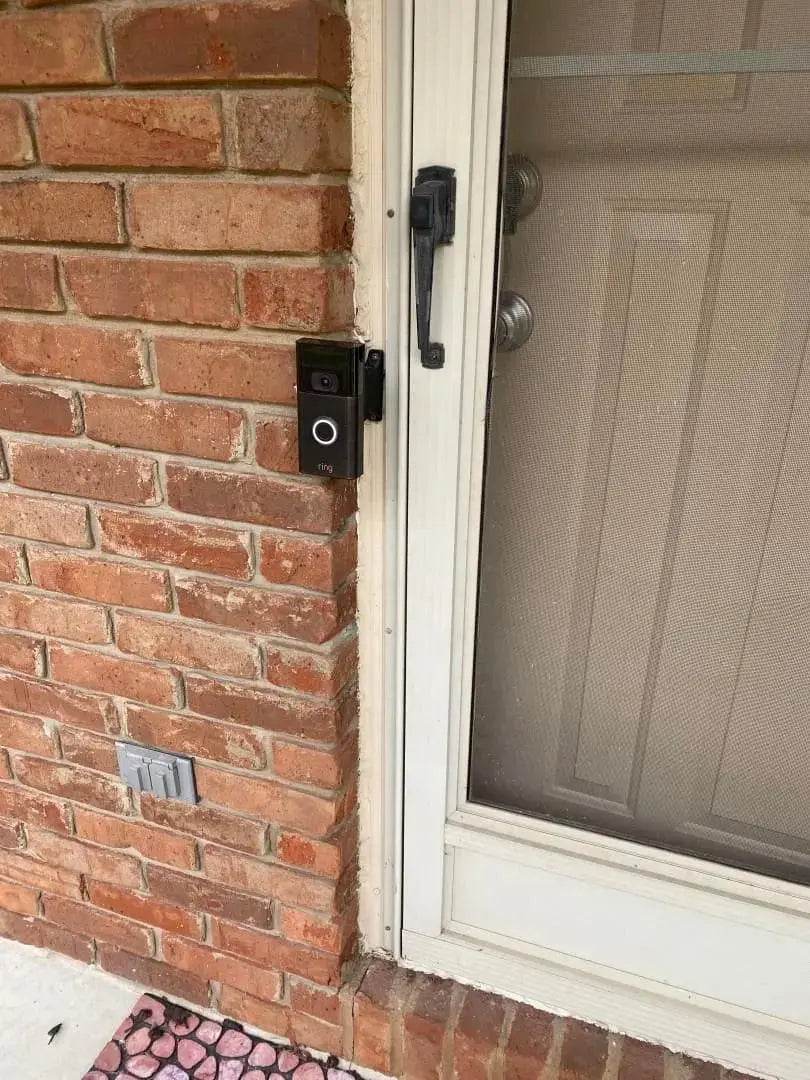

Product Examples

(See listing photos for details or contact us for more examples!)

Need Help? Confirm Compatibility & Measurements!

Confused about your Ring model? Need help measuring extension length?

Standard Color: Black. For other colors, add the Color Change Request item.

Doorbell Not Included. Includes the 2-piece extension mount (Extension Base + Doorbell Adapter Bracket) and necessary assembly screws.

PETG Material: Printed in durable, outdoor-rated PETG.

3D Printed Quality: Minor cosmetic variations inherent to 3D printing may exist but do not affect function. Contact us with quality concerns before reviewing.

Order the Standard Offset Brick Extension for your Ring Doorbell Plus today! Remember to measure carefully (Trim to Brick Face!) and select your required extension length.
